Comparison of particle size of 3 common kinds of nozzles


LORRIC Taiwan plays a key role worldwide in the manufacturing and supplying of facilities and equipment. Being Taiwan’s primary supplier of nozzles in the domestic market gives LORRIC a strong background to excel on a global scale.


LORRIC Taiwan plays a key role worldwide in the manufacturing and supplying of facilities and equipment. Being Taiwan’s primary supplier of nozzles in the domestic market gives LORRIC a strong background to excel on a global scale.

The average particle size of 3 common kinds of spray shape



Following, LORRIC use laser diffraction particle size analyzer to get the particle sizes of 3 different kinds of nozzle which is under 2kg pressure and 2Lpm flow rate.

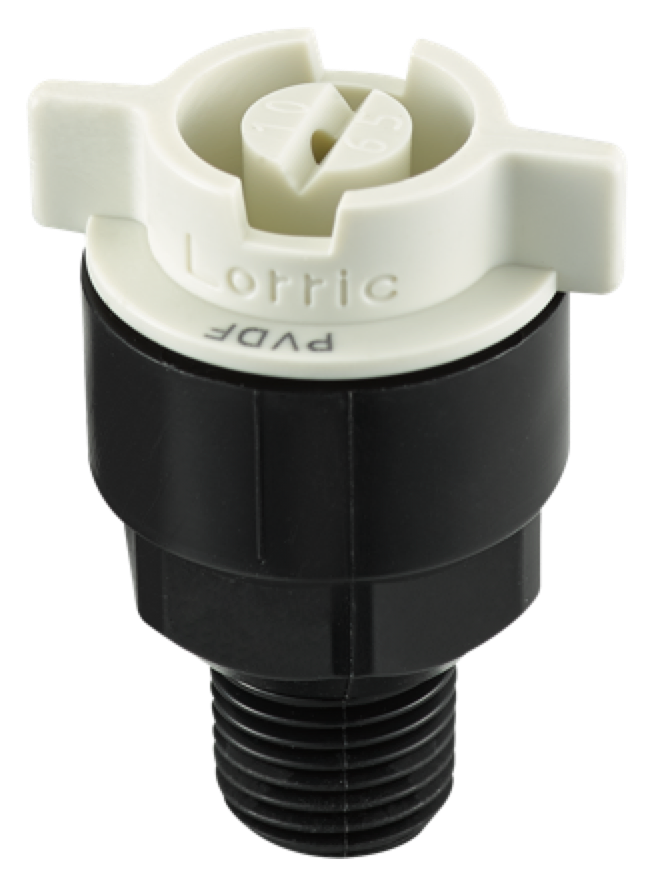

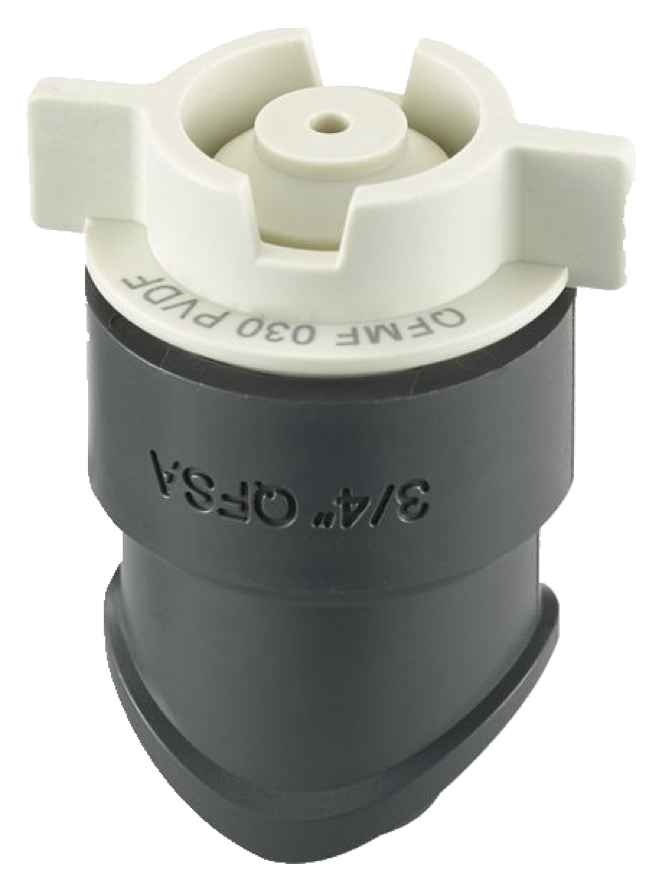

 Various nozzles Average spray particle size Comparison of particle size

Cone shape

274um  Coarse

Fan shape

234um Fine

Hollow Cone

221um Finest



Features of particle size

 • Smaller the flow rate, finer the particle size.
  Greater the pressure, finer the particle size.
  Particle size will be varied by nozzles with different structure.
