Features
- Adopts a Holeless multi-slotted core, possess a more uniform impact than other standard solid cone nozzles of the same type.
- Two piece nozzle design which includes nozzle and the body allows quick and accurate installation by hand. It is convenient for on-site management. Nozzle tip is secured into the body and fastened by three buckle points to avoid the nozzle tip loosening and ensure the performance quality.
- The internal gaskets are available in various options such as EPDM, Viton and FEPM, which can be adapted to various types of chemicals. With special structural design, the nozzles can be closely attached to the base to avoid water leakage.
- According to the working environment, the body has two choices of thread type and welding type.
- Recommended working pressure: 2.0 kgf/cm²
- Flowrate tolerance: ± 5% @ 2.0 ± 0.1 kgf/cm²
- Angle tolerance: ± 5° @ 2.0 ± 0.1 kgf/cm²
- Applications:
● Cleaning: Gas, exhaust gas, dust, cleaning device, tank cleaning, etc.
● Cooling: gas, tank, machinery, metal, roof etc.
● Dispersion: Humidifying, dust suppression.

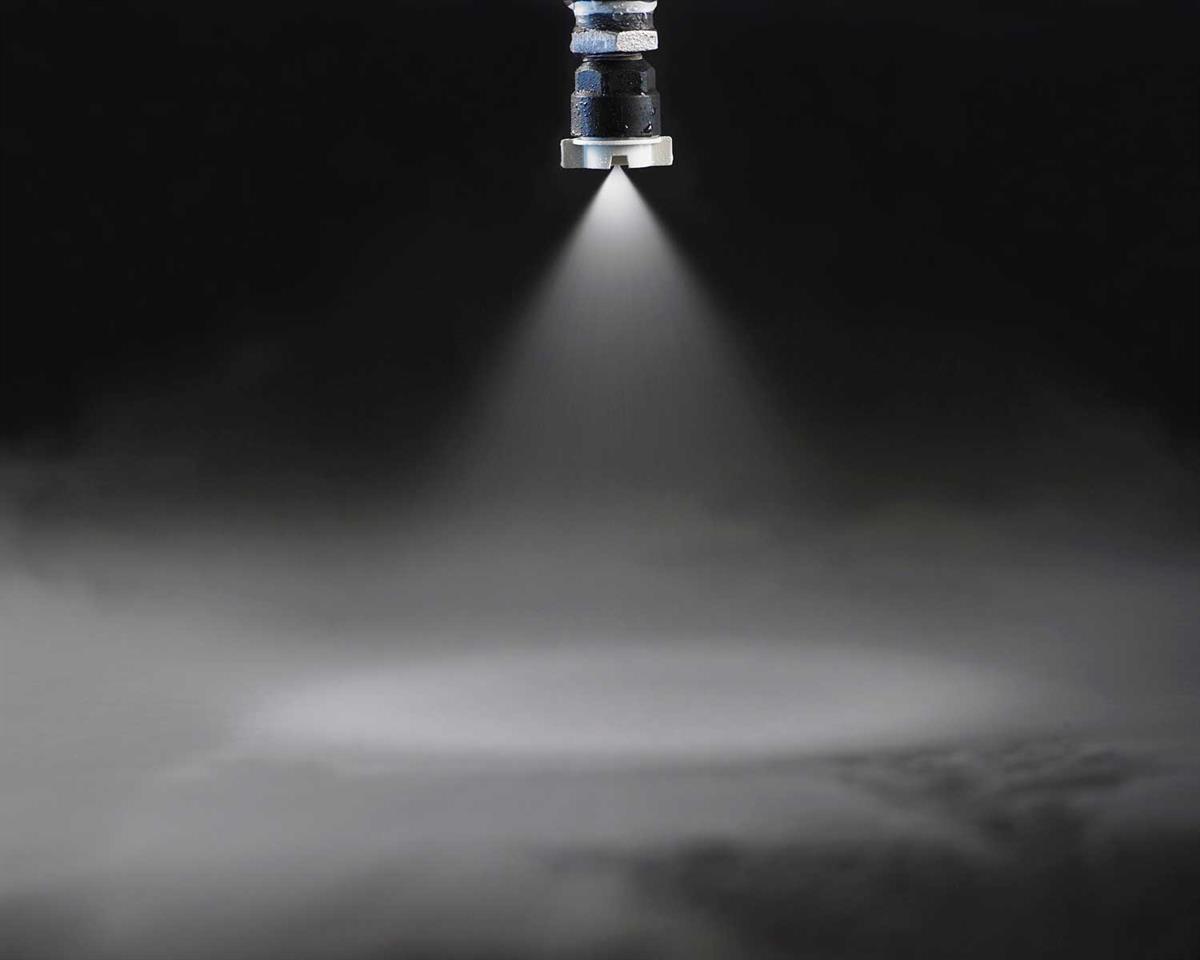

Spray pattern & Flow distribution
Specs
Please place your order according below information.

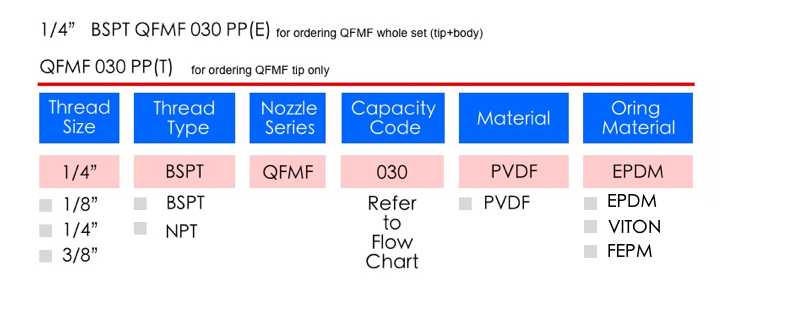

How to pleace an order for LORRIC nozzles?
- • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above. Click to understand how to use the capacity & angle.
- • Please refer to the following order example for placing order to LORRIC.
- Example :
-
-
| Spray Angle |
Capacity Code |
Capacity at Pressure |
Capacity at Pressure |
0.7
kgf/cm² |
1.0
kgf/cm² |
1.5
kgf/cm² |
2.0
kgf/cm² |
4.0
kgf/cm² |
6.0
kgf/cm² |
8.0
kgf/cm² |
10.0
kgf/cm² |
15.0
kgf/cm² |
| 50° |
020 |
1.18 |
1.41 |
1.73 |
2.00 |
2.83 |
3.46 |
4.00 |
4.47 |
5.48 |
|
025 |
1.48 |
1.77 |
2.17 |
2.50 |
3.54 |
4.33 |
5.00 |
5.59 |
6.85 |
|
030 |
1.77 |
2.12 |
2.60 |
3.00 |
4.24 |
5.20 |
6.00 |
6.71 |
8.22 |
| ≀ |
035 |
2.07 |
2.47 |
3.03 |
3.50 |
4.95 |
6.06 |
7.00 |
7.83 |
9.59 |
|
040 |
2.37 |
2.83 |
3.46 |
4.00 |
5.66 |
6.93 |
8.00 |
8.94 |
10.95 |
|
045 |
2.66 |
3.18 |
3.90 |
4.50 |
6.36 |
7.79 |
9.00 |
10.06 |
12.32 |
|
050 |
2.96 |
3.54 |
4.33 |
5.00 |
7.07 |
8.66 |
10.00 |
11.18 |
13.69 |
| 90° |
055 |
3.25 |
3.89 |
4.76 |
5.50 |
7.78 |
9.53 |
11.00 |
12.30 |
15.06 |
| Spray Angle |
Capacity Code |
Capacity at Pressure |
Capacity at Pressure |
0.07
MPa |
0.1
MPa |
0.15
MPa
|
0.2
MPa |
0.4
MPa
|
0.6
MPa |
0.8
MPa |
1.0
MPa |
1.5
MPa |
| 50° |
020 |
1.19 |
1.43 |
1.75 |
2.02 |
2.86 |
3.50 |
4.04 |
4.52 |
5.53 |
|
025 |
1.49 |
1.79 |
2.19 |
2.52 |
3.57 |
4.37 |
5.05 |
5.65 |
6.91 |
|
030 |
1.79 |
2.14 |
2.62 |
3.03 |
4.28 |
5.25 |
6.06 |
6.77 |
8.30 |
| ≀ |
035 |
2.09 |
2.50 |
3.06 |
3.53 |
5.00 |
6.12 |
7.07 |
7.90 |
9.68 |
|
040 |
2.39 |
2.86 |
3.50 |
4.04 |
5.71 |
7.00 |
8.08 |
9.03 |
11.06 |
|
045 |
2.69 |
3.21 |
3.94 |
4.54 |
6.43 |
7.87 |
9.09 |
10.16 |
12.44 |
|
050 |
2.99 |
3.57 |
4.37 |
5.05 |
7.14 |
8.75 |
10.10 |
11.29 |
13.83 |
| 90° |
055 |
3.29 |
3.93 |
4.81 |
5.55 |
7.85 |
9.62 |
11.11 |
12.42 |
15.21 |
| Spray Angle |
Capacity Code |
Capacity at Pressure |
Capacity at Pressure |
0.7
bar
|
1.0
bar |
1.5
bar
|
2.0
bar |
4.0
bar
|
6.0
bar |
8.0
bar |
10.0
bar |
15.0
bar |
| 50° |
020 |
1.19 |
1.43 |
1.75 |
2.02 |
2.86 |
3.50 |
4.04 |
4.52 |
5.53 |
|
025 |
1.49 |
1.79 |
2.19 |
2.52 |
3.57 |
4.37 |
5.05 |
5.65 |
6.91 |
|
030 |
1.79 |
2.14 |
2.62 |
3.03 |
4.28 |
5.25 |
6.06 |
6.77 |
8.30 |
| ≀ |
035 |
2.09 |
2.50 |
3.06 |
3.53 |
5.00 |
6.12 |
7.07 |
7.90 |
9.68 |
|
040 |
2.39 |
2.86 |
3.50 |
4.04 |
5.71 |
7.00 |
8.08 |
9.03 |
11.06 |
|
045 |
2.69 |
3.21 |
3.94 |
4.54 |
6.43 |
7.87 |
9.09 |
10.16 |
12.44 |
|
050 |
2.99 |
3.57 |
4.37 |
5.05 |
7.14 |
8.75 |
10.10 |
11.29 |
13.83 |
| 90° |
055 |
3.29 |
3.93 |
4.81 |
5.55 |
7.85 |
9.62 |
11.11 |
12.42 |
15.21 |
| Spray Angle |
Capacity Code |
Capacity at Pressure |
Capacity at Pressure |
10
psi |
15
psi |
20
psi
|
28
psi |
60
psi
|
90
psi |
120
psi |
140
psi |
200
psi |
| 50° |
020 |
0.31 |
0.38 |
0.44 |
0.52 |
0.77 |
0.94 |
1.09 |
1.17 |
1.40 |
|
025 |
0.39 |
0.48 |
0.55 |
0.66 |
0.96 |
1.17 |
1.36 |
1.47 |
1.75 |
|
030 |
0.47 |
0.58 |
0.66 |
0.79 |
1.15 |
1.41 |
1.63 |
1.76 |
2.10 |
| ≀ |
035 |
0.55 |
0.67 |
0.78 |
0.92 |
1.34 |
1.64 |
1.90 |
2.05 |
2.45 |
|
040 |
0.63 |
0.77 |
0.89 |
1.05 |
1.53 |
1.88 |
2.17 |
2.34 |
2.80 |
|
045 |
0.70 |
0.86 |
1.00 |
1.18 |
1.73 |
2.11 |
2.44 |
2.64 |
3.15 |
|
050 |
0.78 |
0.96 |
1.11 |
1.31 |
1.92 |
2.35 |
2.71 |
2.93 |
3.50 |
| 90° |
055 |
0.86 |
1.06 |
1.22 |
1.44 |
2.11 |
2.58 |
2.98 |
3.22 |
3.85 |
- * Standard Pressure: Column in red.
- * This product for spray angle 90° and 120° is able to be made to order.
- * For mobile friendly, only 3 column with 3 kinds of pressure will be displayed. For more pressure data, please check the chart on PC or laptop.
Material
Material Options
- TIP：PVDF
- Core: PVC, PEEK (for temperature up to 250°C/482°F and highly corrosive chemicals, by Custom order.)
* Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.
Material Guarantees
Metal
We take high quality smithing metal to produce solid and durable nozzles by detail turning.
Plastic
We promise never using recycled materials.
High Quality
All material is purchased from world top providers.

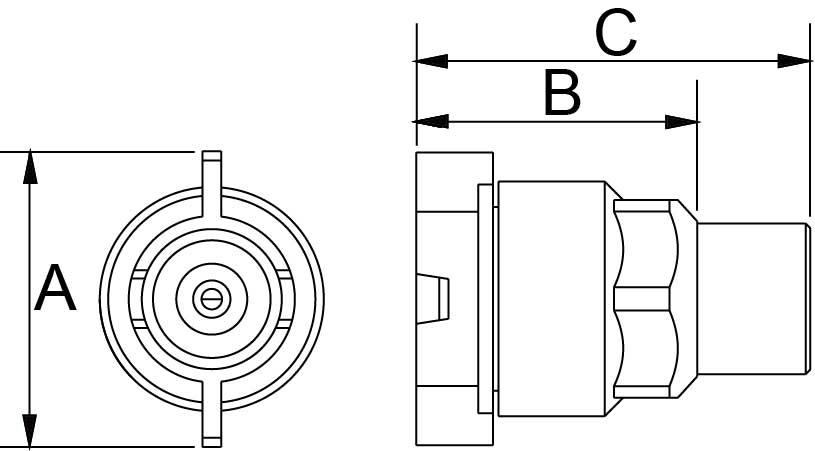

Product Size
Thread
(BSPT)
|
Size (mm)
|
Weight (g)
|
| A
|
B
|
C
|
1/8"Male
|
31.6 |
27.5 |
42.6 |
17.2 |
1/4"Male
|
31.6 |
27.5 |
42.6 |
17.6 |
3/8"Male
|
31.6 |
27.5 |
42.6 |
19.3 |

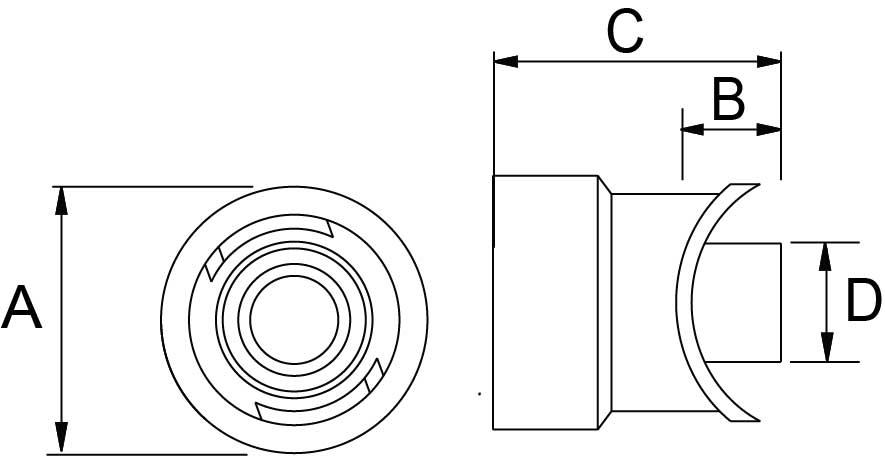

Size of QFSA body
| Size (mm)
|
Weight (g)
|
| A
|
B
|
C
|
D
|
| 26.5 |
10.1 |
12.0 |
31.4 |
8.6 |

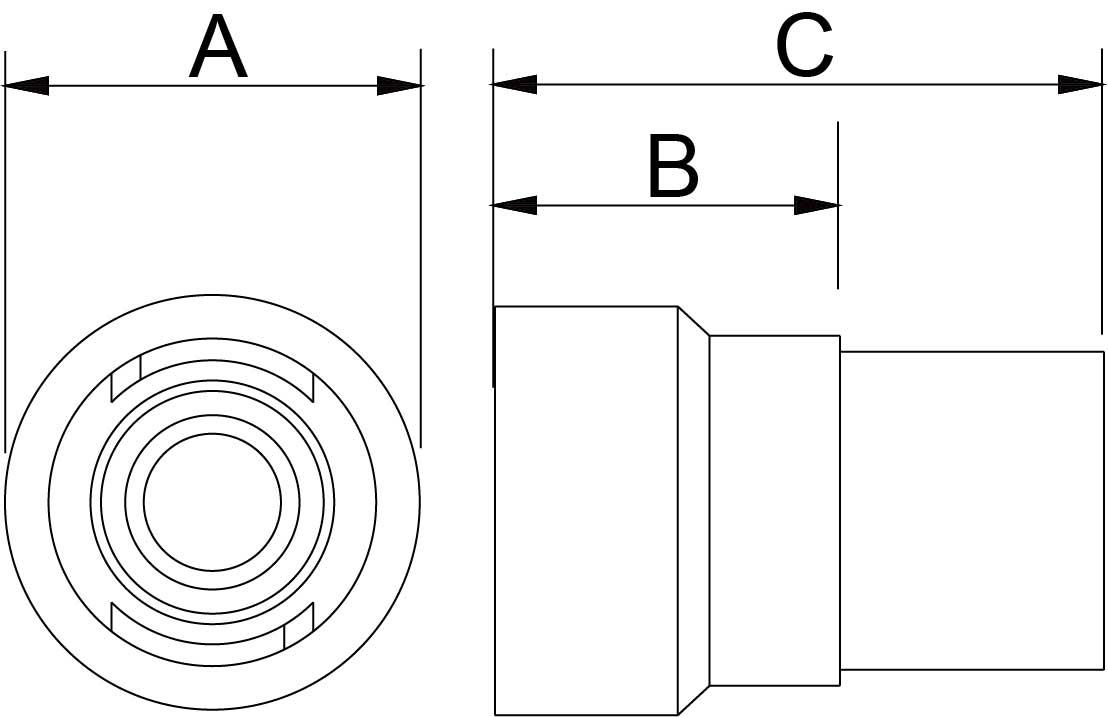

Size of QFWG body
| Thread(mm)
|
Weight(g)
|
| A
|
B
|
C
|
D
|
25.6
|
16.5 |
20.4 |
38.3 |
12.0 |
* Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.
Installation
For nozzle with QF Body (thread)
Step 1
Drill corre-sponding female threads on your pipe
Aim the thread of nozzle body at the female thread.
Step 2
Tightening the body clockwise at the pipe hole.
Step 3
Aim QFMF nozzle tip to nozzle body.
Step 4
Put QFMF nozzle tip into nozzle body.
Step 5
Fasten the tip and the body clockwise to finish the nozzle installation
Finished If the neighbo-ring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the perfor-mance might be affected.
Step 6
Installation completed.
For nozzle with
QFSA Body (welding)
Step 1
Drill correspon-ding hole on your pipe
Aim the bottom of QFSA nozzle body at the hole.
Step 2
Use welding torch to fix QFSA nozzle body in the pipe hole.
Step 3
Aim QFMF nozzle tip to nozzle body.
Step 4
Put QFMF nozzle tip into nozzle body.
Step 5
Fasten the tip and the body clockwise to finish the nozzle installation.
Finished If the neighbo-ring nozzles stagger with each other, you should place the nozzles at least 5 degrees of declination. Otherwise, the perfor-mance might be affected.
Step 6
Installation completed.
* Any inquiries or question to QFSA and QFWG base, please leave message to LORRIC by click "inquiry now" button.
