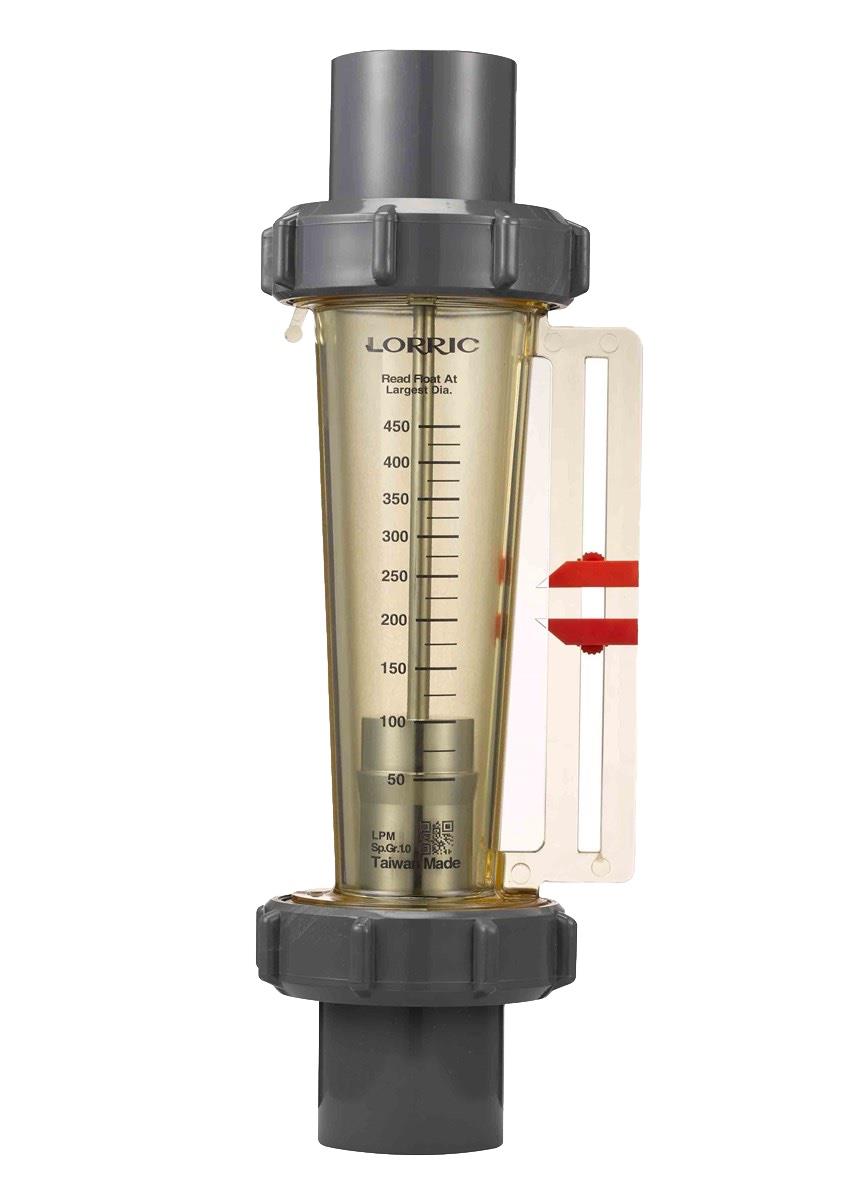

F45 Series - 346 mm large size pipe size 1-1/2"-2" patented dual-indicator flow meter

Patented dual-indicator
Laser engraved degree scales, Flange
Apply for
Water treatment
PCB│Cleaning

Download Product Catalogue

General Features
  • The flange flow meter is equipped with four stainless steel poles on four sides and uses flange adaptor. This flow meter is robust, highly secure and ideal for high pressure conditions.  This flow meter’s lifetime is usually longer than ordinary flow meters.
  • Patented dual-indicator design for easy and clear flow range management.
  • Laser engraved degree scales provide better readability and longer life.
  • Available in customizable units and specific gravity (SG).
  • Each batch of flow meters will be calibrated before delivery for our best
    precision guarantee.
  • Hastelloy float is available for specific high PH liquid usage.
  • Operating Conditions

      Full Scale Accuracy: ±5% F.S.

     ● Max. working pressure: 6.0kg/cm²







Why LORRIC Flow Meters?

「ACCURACY」is everything!

Patented dual-indicator

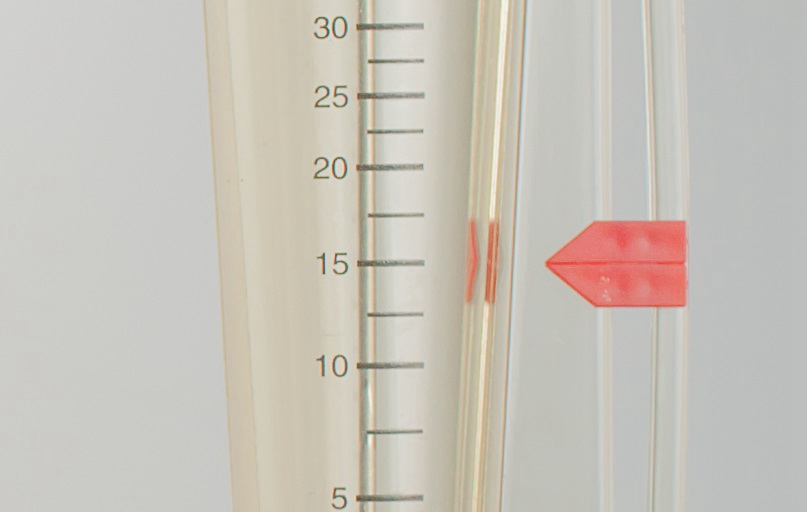

Patented dual-indicator design for easy and clear flow range management.

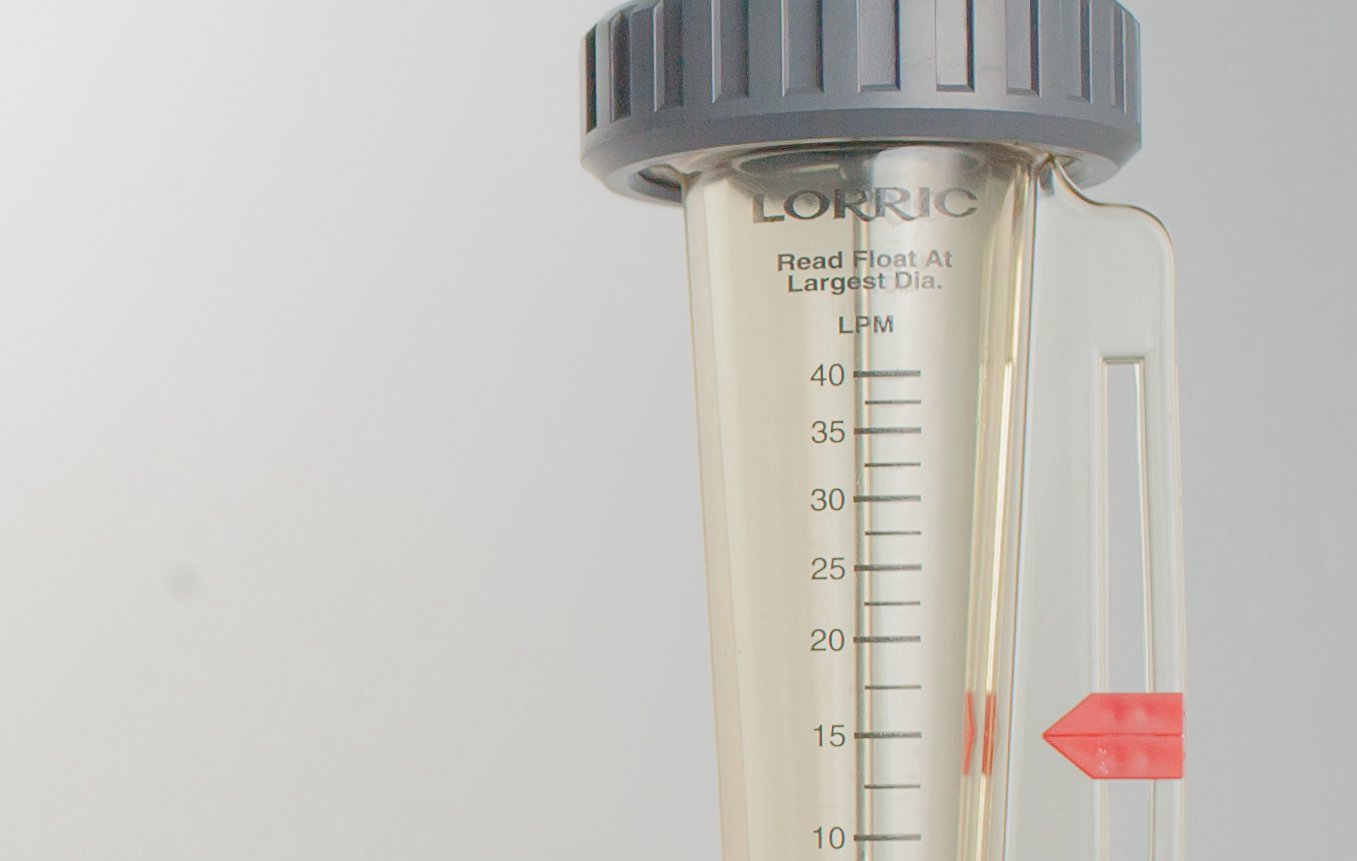

Laser engraved degree scales

Laser engraved degree scales provide better readability and longer life.

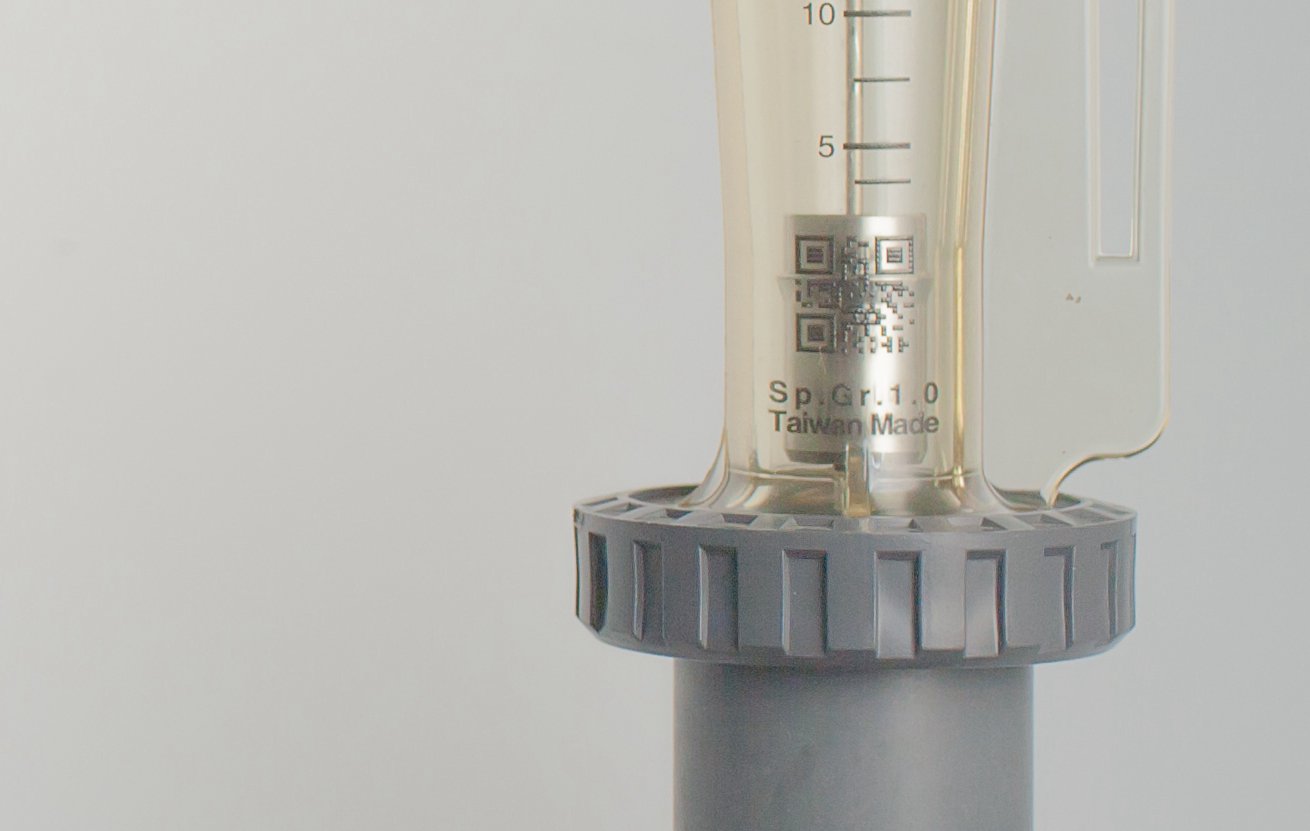

Delicate machining for float

We produce float based on our over 20 years of solid machining experience of producing nozzles. It leads every float got best and stable quality and excellent flow distribution for best on-site performance.



Specs

Please place your order according below information.


How to pleace an order for LORRIC flowmeters?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.

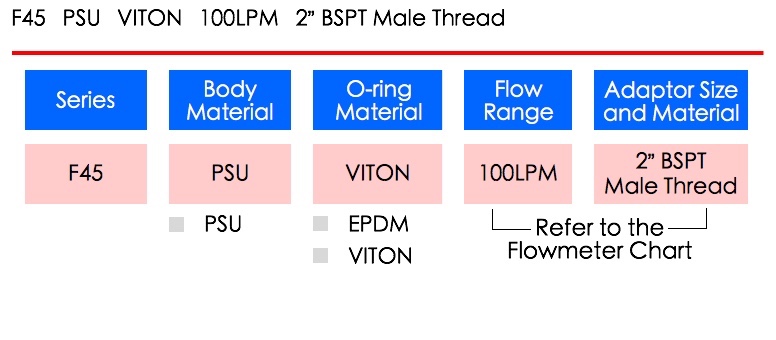

  • • Please refer to following order example for placing order to LORRIC.
  •   Example :

table

Series F45 PSU F45H PSU
Applicable Fluid
  Chemical and Non-organic Solvents

When chemicals are corrosive to stainless steel

Body Material PSU PSU
Float Material AISI 316 Ti / Hastelloy C
Guide Rod Material
O-ring Material
EPDM / VITON
Union Nuts Material UPVC
Guide Rod Bottom Material PP
Scale Range(L/min) 10 - 100 L/min
15 - 150 L/min
20 - 200 L/min
25 - 250 L/min
30 - 300 L/min
50 - 450 L/min
100 - 600 L/min
Adaptor Size and Adaptor Material
1-1/2"
Male Thread BSPT UPVC / PP
NPT UPVC / PP
Female Thread BSPT UPVC
NPT UPVC
Welding Type UPVC
Butt-fusion Adaptor PP
2"
Male Thread BSPT UPVC / PP
Female Thread BSPT UPVC / PP
NPT UPVC UPVC / PP
Welding Type UPVC
Butt-fusion Adaptor PP
  • * Liquid flow meters are calibrated for 20°C water. Gas flow meters are calibrate for normal condition. ( 0°C , 1 atm)
  • * All adaptors can be manufactured to order, please contact us for price and lead time.
  • * Above temperature information is for reference only and may not be applicable for all environments.
  • * F45 PC product has ceased production.

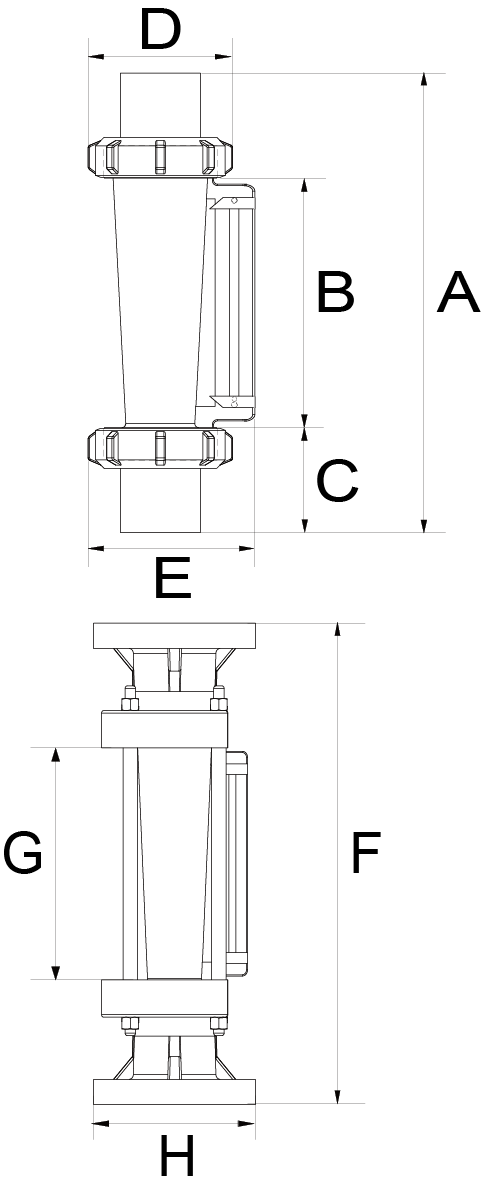

Size
Unit:mm
Adapter Spec   A     B   C   D     E   Panel Elbow Weight
(g)
 F    G    H
1-1/2"
Female Thread
346 187 79.5 109 127 - - -
1-1/2"CNS 347 187 80 109 127 - - -
1-1/2"ASTM 347 187 80 109 127 - - - 1400
1-1/2"JIS 345 187 79 109 127 - - -
2"Male Thread 345 187 79 109 127 - - -
2"Female Thread 345 187 79 109 127 - - -
2"CNS 357 187 85 109 127 - - -
2"ASTM 345 187 79 109 127 - - -
2"JIS 357 187 85 109 127 - - -
PP
OD72.7

ID60.1
305 187 59 109 127 - - -
PP OD60
ID48.9
345 187 79 109 127 - - -
Flange 390 187 155 - - - - -









Installation
Step 1.
Please set up pipes vertically
Step 2.
Disassemble adaptors form flow meter body both ends
Step 3.
Connect adaptors with pipes (include union nuts)



Step 3-1.
Thread type: Wrap up Teflon tape around first for tight connection



Step 3-2.
Welding Type: Gluing adaptors and pipes, connect both together



Step 4.
After glue dried and getting steady, tightly connect adaptor with body with buts by hand



Detailed installation instructions
