General Features
  • Designed for use with highly corrosive solutions.
  • Equipped with an inductor, which confirms the pipeline’s current
    capacity by means of detecting the floating migration. The inductor
    can be connected instruments or computers and is often used as
    part of the control or alarm system.

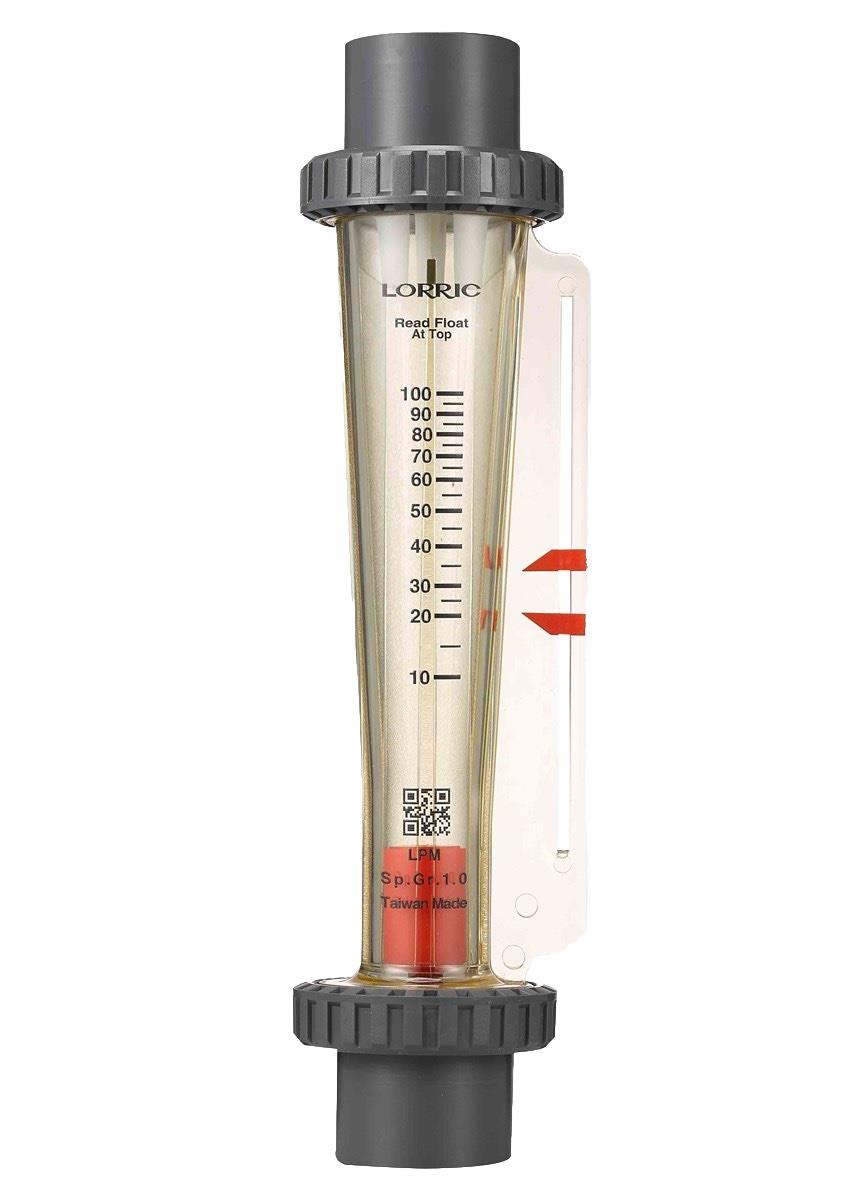

  • Patented dual-indicator design for easy and clear flow range
    management.
  • Laser engraved degree scales provide better readability and longer
    life.
  • Available in customizable units and specific gravity (SG).
  • Each batch of flow meters will be calibrated before delivery for our
    best precision guarantee.
  • Operating Conditions

      Full Scale Accuracy: ±5%.

     ● Max. working pressure: 6.0kg/cm²







Why LORRIC Flow Meters?

「ACCURACY」is everything!

Patented dual-indicator

Patented dual-indicator design for easy and clear flow range management.

Laser engraved degree scales

Laser engraved degree scales provide better readability and longer life.

Delicate machining for float

We produce float based on our over 20 years of solid machining experience of producing nozzles. It leads every float got best and stable quality and excellent flow distribution for best on-site performance.



Specs

Please place your order according below information.


How to pleace an order for LORRIC flowmeters?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.

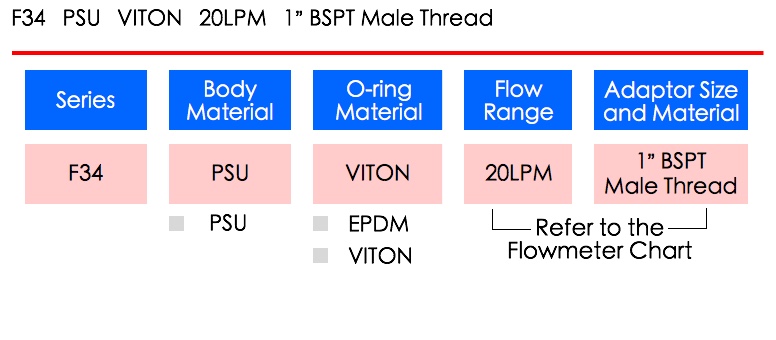

  •   Example :

table

Series F34 PSU Magnet F34 PSU
Applicable Fluid
Chemical and Non-organic Solvents
Body Material PSU
Float Material PP / PVDF
O-ring Material
EPDM / VITON
Union Nuts Material UPVC
Guide Rod Bottom Material PP
Scale Range(L/min) 2.0 - 20 L/min
3.0 - 30 L/min
5.0 - 50 L/min
6.0 - 60 L/min
8.0 - 80 L/min
10 - 100 L/min
Adaptor Size and Adaptor Material
1/2"
Male Thread BSPT UPVC / PP
Female Thread BSPT UPVC / PP
Welding Type UPVC
3/4"
Male Thread BSPT UPVC
NPT UPVC
Female Thread BSPT UPVC / PP
NPT UPVC
Welding Type UPVC
Butt-fusion Adaptor PP
1"
Male Thread BSPT UPVC
NPT UPVC
Female Thread BSPT UPVC / PP
NPT UPVC
Welding Type UPVC
Butt-fusion Adaptor PP
  • * Liquid flow meters are calibrated for 20°C water. Gas flow meters are calibrate for normal condition. ( 0°C , 1 atm)
  • * All adaptors can be manufactured to order, please contact us for price and lead time.
  • * Above temperature information is for reference only and may not be applicable for all environments.
Size
Unit:mm
Adapter Spec   A     B   C   D     E   Panel Elbow Weight
(g)
 F    G    H     I
1"Male Thread 270 171 49.5 60 68 - - - -
1"Female Thread 270 171 49.5 60 68 - - - -
1"CNS 257 171 43 60 68 - - - - 300
1"ASTM 257 171 43 60 68 - - - -
1"JIS 255 171 42 60 68 - - - -
3/4"Male Thread 256 171 42.5 60 68 - - - -
3/4"Female Thread 271 171 50 60 68 - - - -
3/4"CNS 259 171 44 60 68 - - - -
3/4"ASTM 253 171 41 60 68 - - - -
3/4"JIS 260 171 44.5 60 68 - - - -
3/4"DIN 259 171 44 60 68 - - - -
3/4"DIN
T
hickness
Of Pipe Wall
255 171 42 60 68 - - - -
3/4"JIS MAX 252 171 40.5 60 68 - - - -
1/2"ASTM 251 171 40 60 68 - - - -
1/2"JIS 249 171 39 60 68 - - - -
1/2"DIN 249 171 39 60 68 - - - -
PP OD40.4
ID34
257 171 43 60 68 - - - -
PP OD33
ID25.2
253 171 41 60 68 - - - -








Installation
Step 1.
Please set up pipes vertically
Step 2.
Disassemble adaptors form flow meter body both ends
Step 3.
Connect adaptors with pipes (include union nuts)



Step 3-1.
Thread type: Wrap up Teflon tape around first for tight connection



Step 3-2.
Welding Type: Gluing adaptors and pipes, connect both together



Step 4.
After glue dried and getting steady, tightly connect adaptor with body with buts by hand



Detailed installation instructions
