F32B Series - 195 mm middle size pipe size 1/2"-1" flow meter with inductor for computers and instrument

Patented dual-indicator, Inductor
Laser engraved degree scales
Apply for
Water treatment
PCB│Cleaning

Download Product Catalogue

General Features
  • Designed for use with highly corrosive solutions.
  • Equipped with an inductor, which confirms the pipeline’s current
    capacity by means of detecting the floating migration. The inductor
    can be connected instruments or computers and is often used as
    part of the control or alarm system.
  • Patented dual-indicator design for easy and clear flow range
    management.
  • Laser engraved degree scales provide better readability and longer
    life.
  • Available in customizable units and specific gravity (SG).
  • Each batch of flow meters will be calibrated before delivery for our
    best precision guarantee.
  • Operating Conditions

      Full Scale Accuracy: ±5%.

     ● Max. working pressure: 6.0kg/cm2







Why LORRIC Flow Meters?

「ACCURACY」is everything!

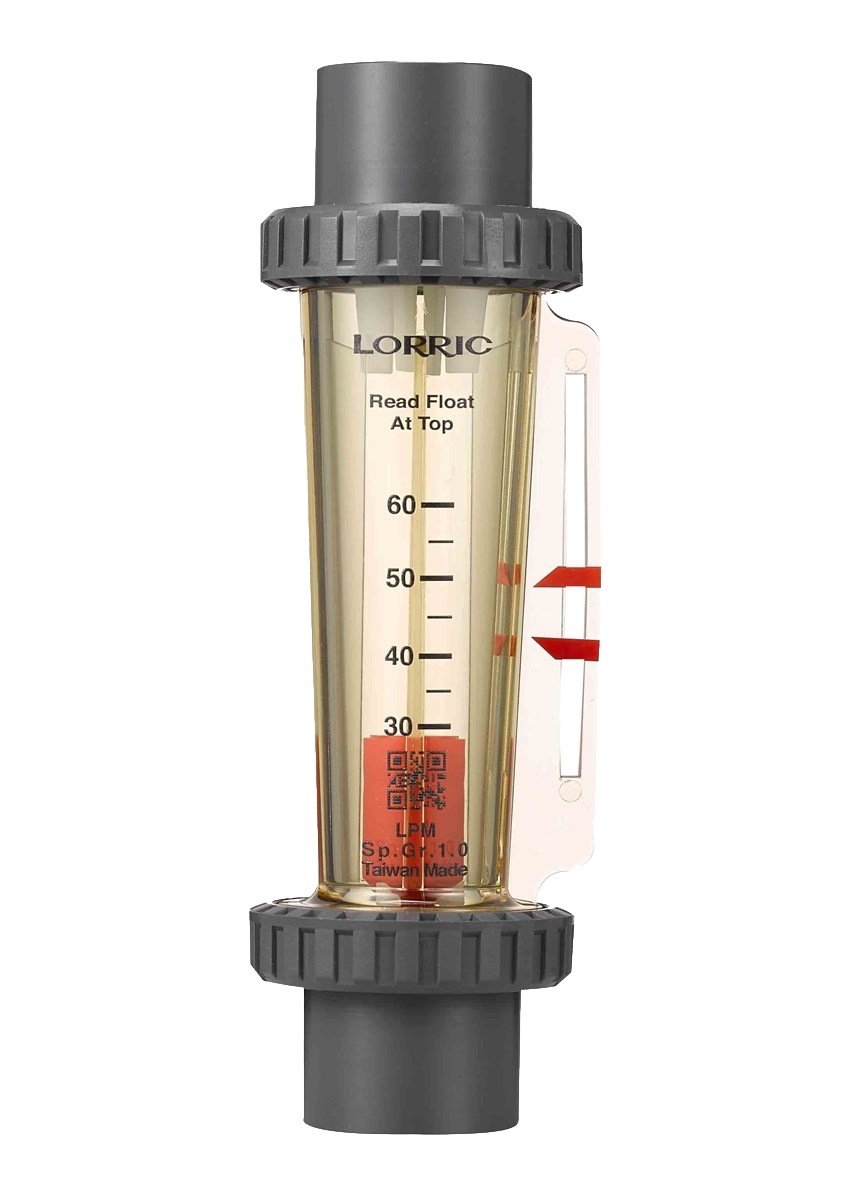

Patented dual-indicator

Patented dual-indicator design for easy and clear flow range management.

Laser engraved degree scales

Laser engraved degree scales provide better readability and longer life.

Delicate machining for float

We produce float based on our over 20 years of solid machining experience of producing nozzles. It leads every float got best and stable quality and excellent flow distribution for best on-site performance.



Specs

Please place your order according below information.


How to pleace an order for LORRIC flowmeters?

  • • You can find the exact Capacity Code according to your requirement of pressure, flow, and spray angle as the capacity & angle chart we provided above.
  • • Please refer to following order example for placing order to LORRIC.

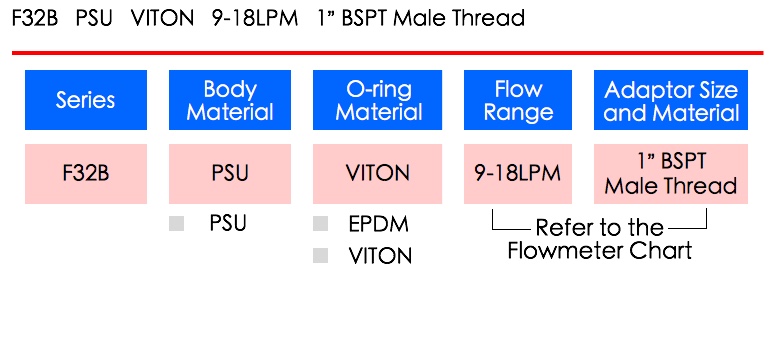

  •   Example :

table

Series F32B PSU Magnet F32B PSU
Applicable Fluid
Chemical and Non-organic Solvents
Body Material PSU
Float Material PVC / PP / PVDF / Teflon
O-ring Material
EPDM / VITON
Union Nuts Material UPVC
Guide Rod Bottom Material PP
Scale Range(L/min) 9 - 18 L/min
16 - 32 L/min
30 - 60 L/min
45 - 90 L/min
Adaptor Size and Adaptor Material
1/2"
Male Thread BSPT UPVC / PP
Female Thread BSPT UPVC / PP
Welding Type UPVC
3/4"
Male Thread BSPT UPVC
NPT UPVC
Female Thread BSPT UPVC / PP
NPT UPVC
Welding Type UPVC
Butt-fusion Adaptor PP
1"
Male Thread BSPT UPVC
NPT UPVC
Female Thread BSPT UPVC / PP
NPT UPVC
Welding Type UPVC
Butt-fusion Adaptor PP
  • * Liquid flow meters are calibrated for 20°C water. Gas flow meters are calibrate for normal condition. ( 0°C , 1 atm)
  • * All adaptors can be manufactured to order, please contact us for price and lead time.
  • * Above temperature information is for reference only and may not be applicable for all environments.
Size
Unit:mm
Adapter Spec   A     B   C   D     E   Panel Elbow Weight
(g)
 F    G    H     I
1"Male Thread 210 111 49.5 60 64 - - - -
1"Female Thread 210 111 49.5 60 64 - - - -
1"CNS 197 111 43 60 64 - - - - 190
1"ASTM 197 111 43 60 64 - - - -
1"JIS 195 111 42 60 64 - - - -
3/4"Male Thread 196 111 42.5 60 64 - - - -
3/4"Female Thread 211 111 50 60 64 - - - -
3/4"CNS 199 111 44 60 64 - - - -
3/4"ASTM 193 111 41 60 64 - - - -
3/4"JIS 200 111 44.5 60 64 - - - -
3/4"DIN 199 111 44 60 64 - - - -
3/4"DIN
Thickness
Of Pipe Wall
195 111 42 60 64 - - - -
1/2"JIS MIN 192 111 40.5 60 64 - - - -
1/2"ASTM 191 111 40 60 64 - - - -
1/2"JIS 190 111 39.5 60 64 - - - -
1/2"DIN 189 171 39 60 64 - - - -
PP OD40.4
ID34
197 111 43 60 64 - - - -
PP OD33
ID25.2
193 111 41 60 64 - - - -

















Installation
Step 1.
Please set up pipes vertically
Step 2.
Disassemble adaptors form flow meter body both ends
Step 3.
Connect adaptors with pipes (include union nuts)



Step 3-1.
Thread type: Wrap up Teflon tape around first for tight connection



Step 3-2.
Welding Type: Gluing adaptors and pipes, connect both together



Step 4.
After glue dried and getting steady, tightly connect adaptor with body with buts by hand



Detailed installation instructions
